NVMe M.2 SSD vs Non-NVMe M.2 SSD: What’s the Difference?

🔧 When it comes to modern storage, M.2 SSDs have become the standard in most new builds. But here’s the catch: not all M.2 drives are created equal. Two of the most common types are NVMe M.2 SSDs and non-NVMe (SATA M.2) SSDs. At first glance, they look almost identical, but in terms of speed, pricing, and overall performance, they’re very different. If you’re building or upgrading a PC, it’s important to understand how these two options stack up against each other.

⚡ Technical Differences

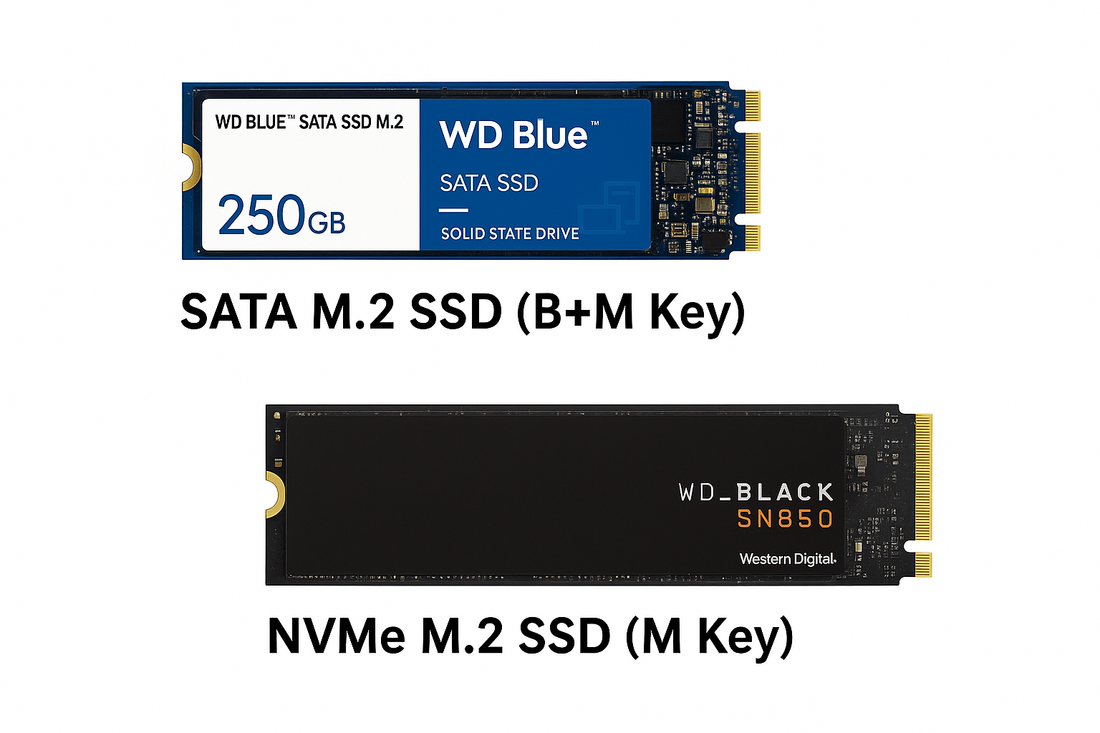

Non-NVMe M.2 SSDs, often called SATA M.2 drives, still use the SATA protocol despite sharing the slim M.2 form factor. Because they’re limited by the SATA interface, their maximum read and write speeds top out around 500 to 600 MB/s. That’s a huge improvement over a mechanical hard drive, but it isn’t much faster than a traditional 2.5" SATA SSD.

On the other hand, NVMe M.2 SSDs connect directly through the PCIe lanes of your motherboard. This allows them to achieve much higher speeds, ranging anywhere from around 3,000 MB/s on PCIe Gen3 models to well over 7,000 MB/s on the latest Gen4 and Gen5 drives. These drives are designed for high bandwidth tasks like booting your operating system in seconds, moving massive files, or running demanding workloads.

💰 Price & Performance Comparison

One of the biggest factors when choosing between these two types of drives is cost. SATA M.2 SSDs are generally the cheaper option, with 1TB models typically priced between $35 and $45. NVMe drives, while a bit more expensive, are becoming increasingly affordable. A 1TB Gen4 NVMe drive often sells for $60 to $90, which is only slightly more than its SATA counterpart but offers several times the performance.

To make the difference clearer, here’s a quick visual comparison of average speeds and prices:

As you can see, NVMe drives deliver significantly faster speeds while staying relatively close in price to SATA M.2 SSDs.

✅ Conclusion

Both NVMe and non-NVMe M.2 SSDs are massive improvements over older hard drives, but they cater to different needs. If you’re looking for the most affordable way to add fast storage, a SATA M.2 SSD will get the job done. But if you want lightning-fast boot times, smoother gaming, and better future-proofing, NVMe M.2 SSDs are the smarter choice.

At IR-PCS, we’ll help you pick the right drive for your system — whether you’re a casual gamer, competitive streamer, or content creator who needs maximum performance.

👉 Ready to upgrade? Check out our custom Gaming PC tiers here
